Product Details:
|
Applicable Industries: | Manufacturing Plant, Farms, Home Use, Construction Works | Showroom Location: | None |
---|---|---|---|
Condition: | New | Type: | Log Splitter |
Use: | Splitting Wood | Power Type: | Gasoline |
Dimension(L*W*H): | 2170*890*985mm | Weight: | 240 KG |
Warranty: | 1 Year | Marketing Type: | New Product 2020 |
Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
Warranty Of Core Components: | 1 Year | Core Components: | Motor, Engine |

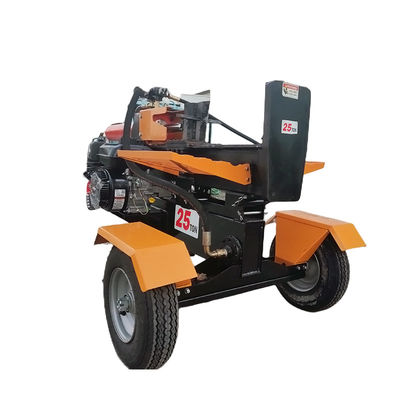

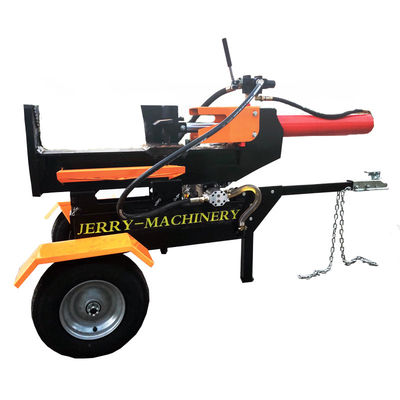

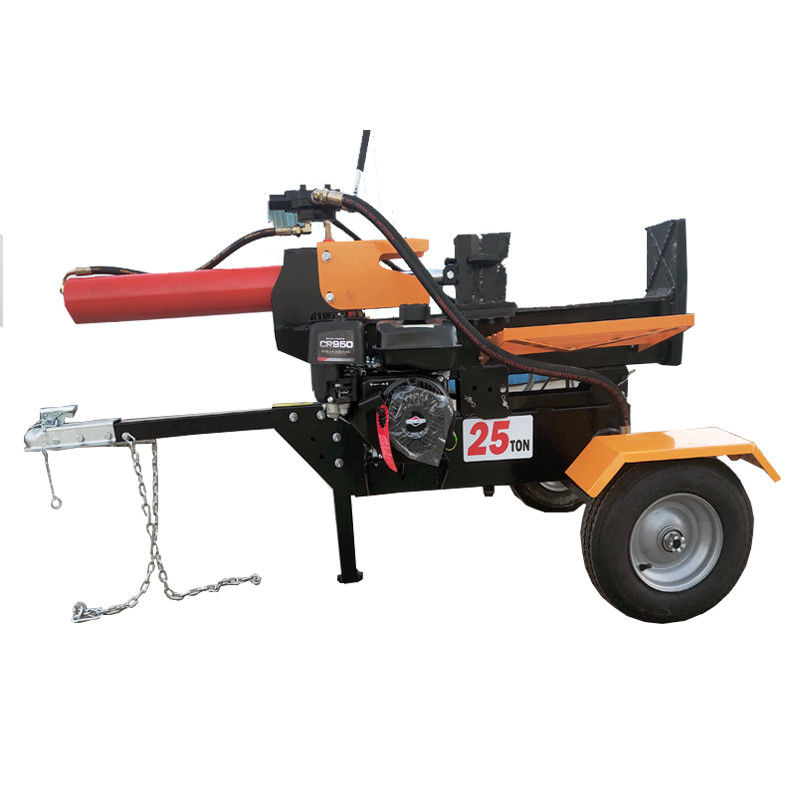

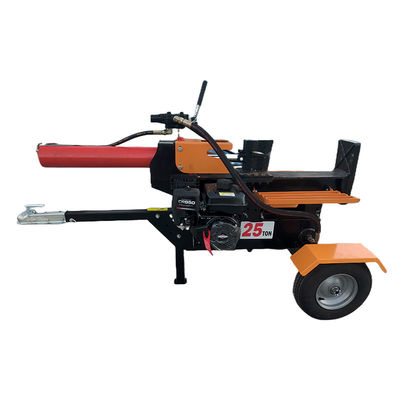

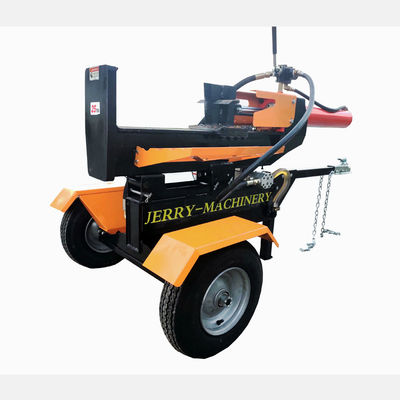

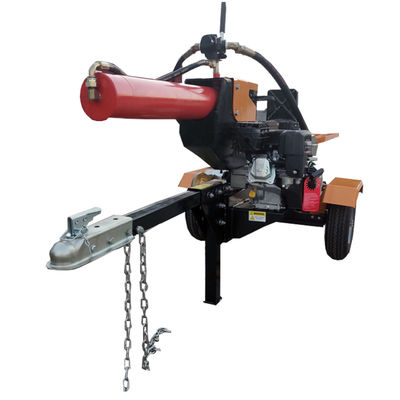

Product Name: | Log Splitter Machine | Model: | 25ton |
Usage: | Splitting Wood | Port: | QINGDAO |
Parameter Type
|
Parameter
|
Parameter Type
|
Parameter
|
Product Dimensions (L/W/H*MM)
|
2170/890/985
|
Log splitting stroke (MM) can be customized
|
660
|
Bare metal weight (KG)
|
240
|
Operating pressure
|
20MP-32MP adjustable
|
Packing size (L/W/H*MM)
|
1230/700/930
|
OEM
|
Acceptable
|
Total packing weight (KG)
|
272
|
Engine brand
|
Breton
|
Horizontal/Vertical
|
Standing and sleeping
|
Engine type
|
Air-cooled four-stroke gasoline engine, OHV
|
Split method (optional)
|
2-way/4-way
|
Engine capacity
|
6.5P 208CC
|
Cycle
|
11S
|
Engine axial
|
The horizontal axis
|
Oil pump model/flow L/min
|
CBNA-13/1.8D 1J746806/46.8
|
Start the engine
|
Electric / Recoil
|
Control valve
|
100L three-position automatic return
|
Rated Torque* (N.m @3060rpm)
|
12.9
|
Maximum tonnage
|
28T
|
Cylinder
|
Single cylinder, cast iron cylinder liner
|
Hydraulic oil number
|
46#
|
Engine fuel tank capacity
|
3.1L
|
Filter
|
Yes
|
Bore (MM)
|
68.3
|
Tire
|
4.8-8
|
Oil Capacity (L)
|
0.6
|
Traction
|
American 2*2 Trailer Ball Cover
|
Stroke (MM)
|
55.9
|
Hydraulic oil minimum level
|
9L
|
Net Weight (KG)
|
16
|
Hydraulic oil maximum level
|
13L
|
Engine specifications (length, width and height)
|
321*376*346
|
Cylinder inner diameter (MM)
|
100
|
|
|
