Product Details:
Place of Origin: Shandong, China
Brand Name: Jerry-Machinery
Certification: CE.EPA
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: $3,900.00/sets 1-9 sets
Packaging Details: Customizable packaging
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100 Set/Sets per Month

Wood Splitting Wounted Log Splitter 20T Firewood Processor With Hydraulic Diesel

Description
Applicable Industries: Farms, Home Use, Construction Works , Energy & Mining Showroom Location: None
Condition: New, New Type: Log Splitter
Use: Splitting Wood Power Type: Gasoline
Dimension(L*W*H): 2240*1000*2230mm Weight: 650 KG
Warranty: 1 Year Marketing Type: New Product 2022
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year Core Components: Bearing, Motor, Engine
Product Name: Firewood Processor Log Splitter Application: Wood Splitting Wounted
Usage: Wood Shredder Cutting Wood Branch Power: Electric/Gasoline/Diesel Motor
Raw Material: Wood Tree Package: Wooden Case
Feature: Portable Split Wood

Products Description
Wood Splitting Wounted Log Splitter 20T Firewood Processor With Hydraulic Diesel 0
Max Splitting Force
15T
20T
Cycle Time
7seconds
8seconds
Max Splitting Length
610mm
610mm
Max Splitting Diameter
380mm
400mm
Work Efficiency
4m3/h
5m3/h
Power
13.5HP gasoline engine
13.5HP gasoline engine
Engine Displacement
420cc
420cc
Fuel Tank Capacity
6.6L
6.6L
Engine Oil Capacity
1.1L
1.1L
Gross Torque
25N.m/2500rpm
25N.m/2500rpm
Firewood Conveyor
Length:3.2m
Length:3.2m

Width of belt:250mm
Width of belt:250mm

Width of chute:400mm
Width of chute:400mm

Hydraulic rotator:1set
Hydraulic rotator:1set
Chain Saw length
22‘’
22”
Chain Saw Rotate Speed
5600rpm
5600rpm
Sawing Speed
Adjustable
Adjustable
Oil Pump
22GMP, 2-stage
22GMP, 2-stage
Oil Tank Capacity
50L
50L
Control Valve
ONE-handle
ONE-handle

4-Directional control valve
4-Directional control valve
Tyre
12"
12"
Knife
4 ways (6 ways option)
4 ways (6 ways option)
Weight
480kg
510kg
Main Machine Package size
2200x900x1100mm
2200x900x1100mm
Conveyor Package Size
2260*960*1170mm
2260*960*1170mm
Units/20’:
7Units
7Units
Wood Splitting Wounted Log Splitter 20T Firewood Processor With Hydraulic Diesel 1
Wood Splitting Wounted Log Splitter 20T Firewood Processor With Hydraulic Diesel 2
Wood Splitting Wounted Log Splitter 20T Firewood Processor With Hydraulic Diesel 3

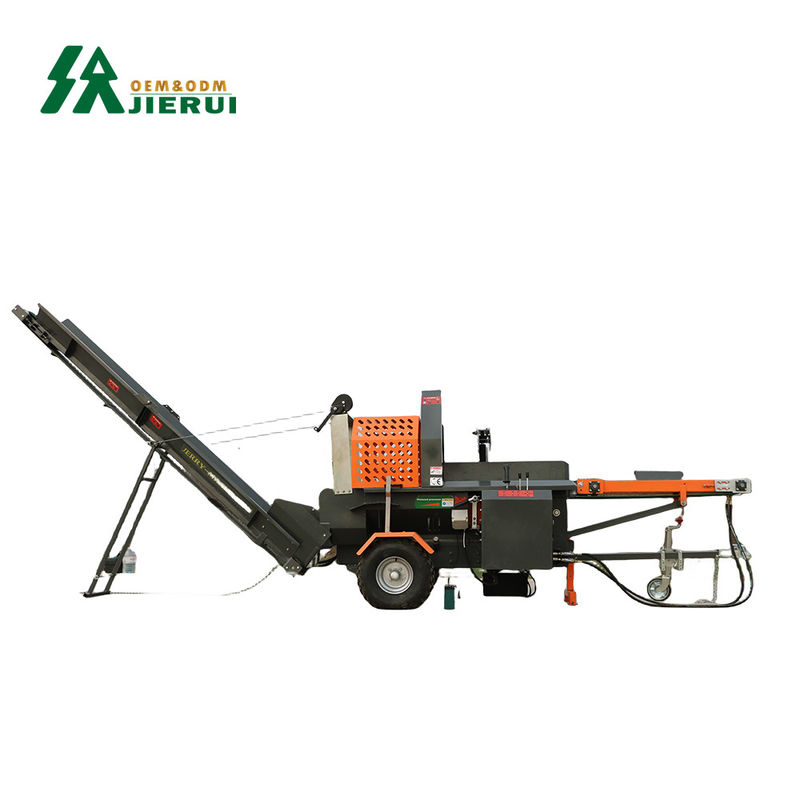

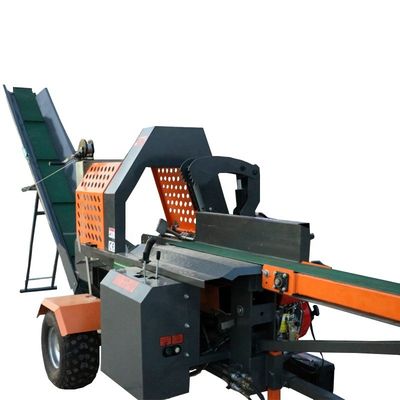

Jierui Machinery are proud to unveil our new range of firewood processors, After years of being in the forestry industry a processor, has always been in the works. The JR480D is our 20ton splitting force model. With its modern efficient hydraulic system the dominator processors are smooth and easy to use and complies with the new (2018) CE safety standard. The JR480D comes complete with hydraulic feeder, 3 meter conveyor,22″ STHIL Chainsaw blade and Briggs & Stratton engine with electric start as standard. We have tried to keep the operation simple, easy and safe. The saw will not engage until the safety handle is used and guards are down. If the guard is raised the hydraulic system will automatically stop the saw and splitter from working for increased operator safety. Once the timber has been sawn and dropped into the splitting area the ram will automatically engage pushing the log into the fully height adjustable 4 way splitting head. The processor has a 50mm tow hitch for towing around the yard or working area.

Product Details
Wood Splitting Wounted Log Splitter 20T Firewood Processor With Hydraulic Diesel 4
Hydraulic automatic log clamping
Wood Splitting Wounted Log Splitter 20T Firewood Processor With Hydraulic Diesel 5

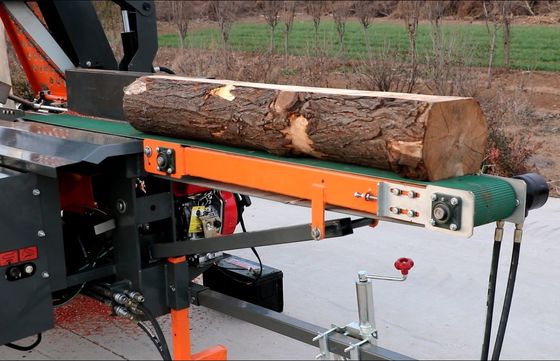

Automatic feed conveyor system
Wood Splitting Wounted Log Splitter 20T Firewood Processor With Hydraulic Diesel 6
Setting the length of firewood
Wood Splitting Wounted Log Splitter 20T Firewood Processor With Hydraulic Diesel 7
Fully automatic control system
Wood Splitting Wounted Log Splitter 20T Firewood Processor With Hydraulic Diesel 8
Log table-JR100
Wood Splitting Wounted Log Splitter 20T Firewood Processor With Hydraulic Diesel 9
Log table-JR200
Wood Splitting Wounted Log Splitter 20T Firewood Processor With Hydraulic Diesel 10

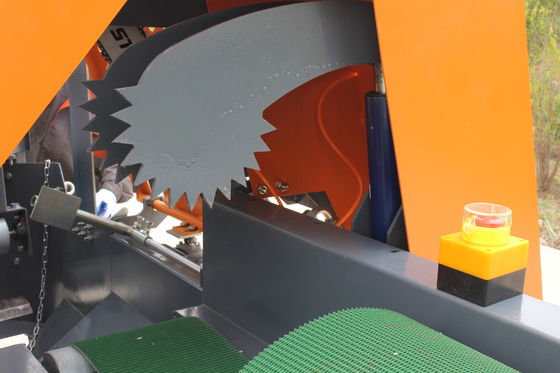

Automatic safety protection device

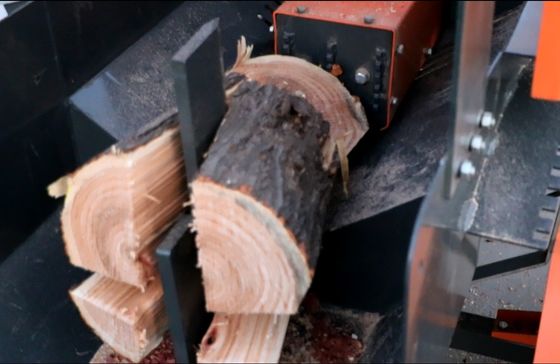

Splitting wedges can be adjusted up or down


Wood Splitting Wounted Log Splitter 20T Firewood Processor With Hydraulic Diesel 11

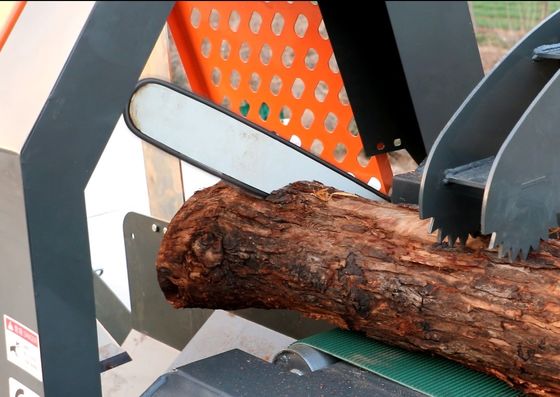

We use STIHL chain saw guides and chains imported from Germany
