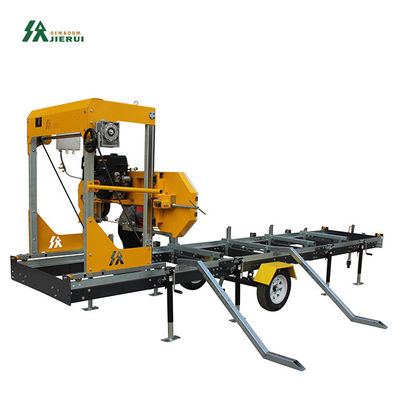

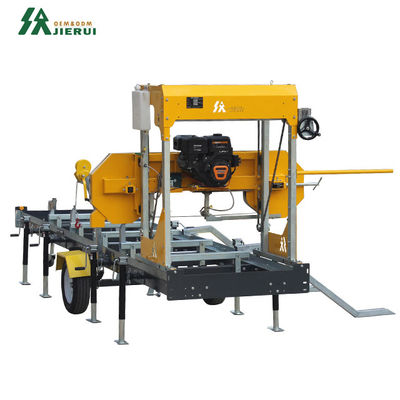

1100mm Max.Working Width 220/380V JR80 31"H Brick Making Wood Cutting Machine Sawmill

Large Image : 1100mm Max.Working Width 220/380V JR80 31"H Brick Making Wood Cutting Machine Sawmill

Product Details:

Place of Origin:	Shandong, China
Certification:	CE.EPA

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	$1,500.00/sets 1-9 sets
Packaging Details:	Customizable packaging
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	100 Set/Sets per Month

Contact Now

1100mm Max.Working Width 220/380V JR80 31"H Brick Making Wood Cutting Machine Sawmill

Description

Condition:	New, New	Type:	Band Saw
Use:	Woodworking	Style:	Horizontal
Usage:	Cutting Wood	Voltage:	220/380V
Dimension(LWH):	485450525cm	Warranty:	1 Year
Application:	Factory, Forestry	Weight (KG):	2000 KG
Key Selling Points:	Easy To Operate	Max.Working Width(mm):	1100mm
Band Saw Type:	Log Band Saw	Applicable Industries:	Farms, Home Use
Marketing Type:	New Product 2020	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Warranty Of Core Components:	1 Year
Core Components:	Motor

Portable sawmill

The best choice for YOU

Products Description

BUILT FARM TOUGH AND USER FRIENDLY

1.Within 10 minutes of arrival, you're ready to cut lumber

2.No matter where or how big of a job, the JIERUI SAWMILL is sure to meet your needs

3.User friendly and ready to cut on the spot

4.Power is gasoline engine/electric motor

5.It is also effective for hardwoo

Product Paramenters

Sawmill parameters	JR59	JR69	JR80	JR1000
Max Log Cutting Dia(cm)	60	70	92	105
Max Log Cutting Dia(inch)	24	28	36	41
Max Log Cutting Length	3.5m	3.5m	3.5m	3.5m
Track Length	4m	4m	4m	4m
Motor Power	5.5KW/18HP	5.5KW/18HP	7.5KW/18HP	11KW/27HP
Engine power	Electricity/Gasoline/Diesel	Electricity/Gasoline/Diesel	Electricity/Gasoline/Diesel	Electricity/Gasoline/Diesel
Packing Size	2.1m1m1.5m	2.1m1m1.6m	2.1m1m1.76m	2.1m1m1.76m
Voltage Options	220V/380V	220V/380V	220V/380V	380V
Saw Wheel Diameter	400mm	400mm	500mm	500mm
Blade Size	3300350.9mm	3500350.9mm	4200350.9mm	4200350.9mm
Lifting	manual	manual	manual	manual
Walking	manual	manual	manual	manual
Safe cutting Speed	6m/min	6m/min	4m/min	4m/min
Dimension	4m2.5m1.8m	4m2.5m1.8m	4m2.5m1.8m	4m2.5m1.8m
Weight	500kg	550kg	650kg	770kg
Warranty	1 year	1 year	1 year	1 year
Color customization	Supported	Supported	Supported	Supported
Logo customization	Supported	Supported	Supported	Supported

From the details,

where are our advantages

1.About lifting system

Others

1.Steel wire rope is used for lifting and easy to wear.2.Sudden interruption will lead to great security risks.
3.Pulley design is adopted,the structure is complex,and there may be more fault points.

OUR

1.Chain design,simple structure and convenient replacement.2.The sprocket rotates with a bearing,which is not easy to wear,It has
been tested without fault after 30000 times of lifting and lowering

2.About sawhead lifting track

Others

1.The lifting track adopts hard friction which is easy to wear, the lifting is not smooth,and it is easy to get stuck.

2.The sawwheel needs to be adjusted on four sides,which is difficult to adjust.

OUR

1.Saw blade lifting adopts linear guide rail with double sliding blocks.

2.Smooth lifting,no jamming,high sawing precision andbetter stability blade lifting adopts linear guide rail.

3.About Saw Head Positioning Unit

Others

1.Mechanical locking device through pin shaft and wheel disc.

2.The size adjustment is not accurate enough.
3.The pin shaff is easily worn due to vibration,resulting in potential safety hazards.
4.Lifting of sawing machine is more laborious.

OUR

1.Adopt reducer for lifting ,stable and labor-saving.

2.The reducer is equipped with a locking system,which can be locked at any
position.
3.Ensure more accurate sawing.

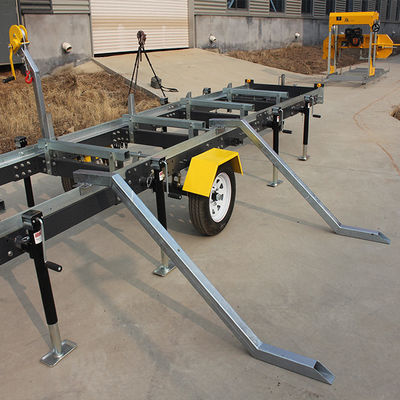

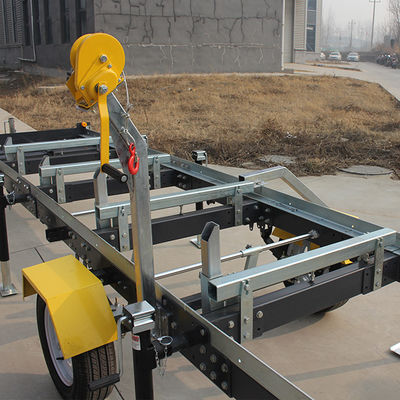

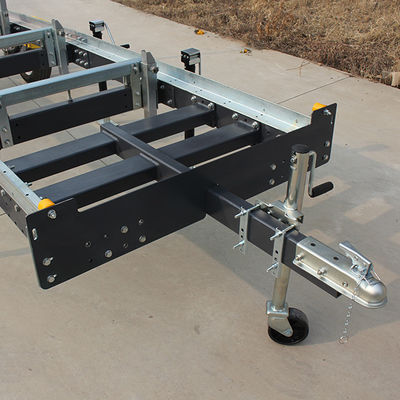

4.About the trailers track and log supporting

Others

1.T-shaped guide rail is adopted , and the operation is not stable enough.

OUR

1. With adjustable horizontal log supporting

2.Double layered tracks are more sturdy

3.The use of spring plates in trailers can better reduce vibration damage to the track

5.Aout engine starting

Others

1.Manual start only.2.The engine support frame is thin and vibrates greatly

OUR

1. Electric start with key, 2. There is a dedicated battery storage box

Function

With trailer spring plate

Sturdy trailer towing device

Saw blade roller guide device，Band saw blade cooling system

Rail anti-collision block

Adjustable log support

Portable saw blade tensioning wrench

We still have more

Portable sawmill
Sawn diameter of logs	59/69/79/92CM
Power support	Diesel
		gasoline
		electricity
OEM and ODM	YES

Portable sawmill with trailer
Sawn diameter of logs	59/69/79/92CM
Power support	Diesel
		gasoline
		electricity
OEM and ODM	YES

CNC sawmill
Sawn diameter of logs	100/130/160CM
Power support	electricity

		electricity
OEM and ODM	YES

7.5T Log splitter

18T Log splitter

25T Log splitter

25T Firewood processor

30T Firewood processor

Packing & Delivery

FAQ

Q: Can I customized the machine from your company? A: Of course you can,we can manufacture the machine based on your customsized requirement. Q: How does your factory do regarding quality controlling? A: All raw material we used are environmental-friendly Skillful workers care every details in handling the producing and packing process Quality control department are specially responsible for quality in each process Q:Does the packing strong? A:Yes, of course! All of our export packing with strong wooden box, all to meet the export packaging standards. Q: How about the after-sale service? A:TM online for 24 hours :Tel/Whatsapp :+8618866126681 skype,MSN,whatsapp，also contact by email :Jerry@jerry-sawmill.com etc.
