Firewood Processor Pto Wood Log Splitting Machine For Heavy Duty Wood Splitting

Large Image : Firewood Processor Pto Wood Log Splitting Machine For Heavy Duty Wood Splitting

Product Details:

Place of Origin:	Shandong, China
Brand Name:	Jerry-Machinery
Certification:	CE.EPA

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	$500.00/sets 1-9 sets
Packaging Details:	Customizable packaging
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	100 Set/Sets per Month

Contact Now

Firewood Processor Pto Wood Log Splitting Machine For Heavy Duty Wood Splitting

Description

Applicable Industries:	Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Home Use, Construction Works , Energy & Mining	Showroom Location:	None
Condition:	New, New	Type:	Log Splitter
Use:	Splitting Wood	Power Type:	Electric
Weight:	100 KG	Warranty:	1 Year
Marketing Type:	New Product 2022	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Warranty Of Core Components:	1 Year
Core Components:	Bearing, Motor, Engine	Product Name:	Hydraulic Electric Wood Log Splitter
Application:	Wood Splitting Wounted	Usage:	Wood Shredder Cutting Wood Branch
Power:	Electric Motor	Raw Material:	Wood Tree
Package:	Wooden Case	Feature:	Portable Split Wood
Port:	QINGDAO

Product Description

7TON
Parameter Type	Parameter	Parameter Type	Parameter

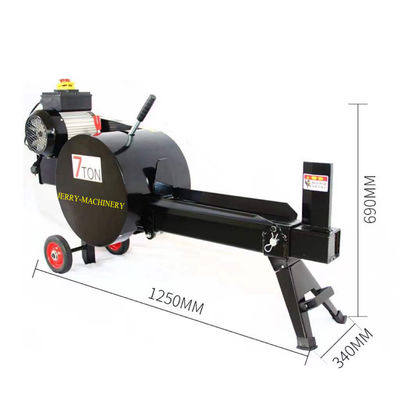

Product Dimensions (L/W/H*MM)	1250/340/680	Motor Power	2200W
Bare metal weight (KG)	88	Protection class	IP54

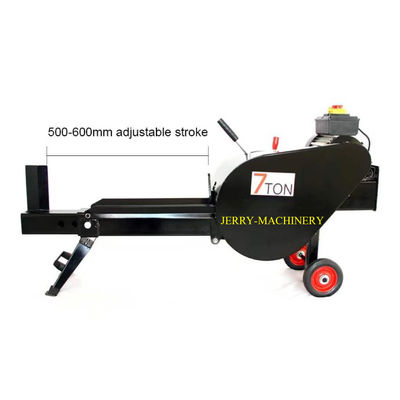

Packing size (L/W/H*MM)	1200/380/700	Adjustable wood splitting stroke (MM)	500/550/600
Total packing weight (KG)	100	Split wood diameter (MM)	5-400
Horizontal/Vertical	Horizontal	Control handle	Two hands with safety switch
Split method	2 way single cutter head	Maximum tonnage	7T
Cycle	1S	Tire	6X1.5
Working voltage/Hz	115V/60Hz	OEM	Acceptable

7.5TON
Parameter Type	Parameter	Parameter Type	Parameter
Product Dimensions (L/W/H*MM)	990/270/470	Log Splitting Stroke (MM)	560
Bare metal weight (including hydraulic oil KG)	45	Split wood diameter φ (MM)	5-400
Packing size (L/W/H*MM)	1080/325/520	Operation method	Hands
Total packing weight (KG)	50	Maximum tonnage	7.5T
Horizontal/Vertical	Horizontal	Hydraulic oil number	46#
Split method (optional)	2-way/4-way	Tire	6X1.5
Cycle	15S	Hydraulic oil	3L
Working voltage/Hz	115V/60Hz	Cylinder inner diameter (MM)	55
Motor Power	2200W	Piston rod diameter (MM)	30
Protection class	IP54	OEM	Acceptable

18TON
Parameter Type	Parameter	Parameter Type	Parameter
Product Dimensions (L/W/H*MM)	1880/650/800	Operating pressure	20MP-28MP adjustable
Bare metal weight (including hydraulic oil KG)	153	OEM	Acceptable
Packing size (L/W/H*MM)	1465/700/700	Consumer Warranty	1 Year
Total packing weight (KG)	182	Engine brand	Breton
Horizontal/Vertical	Horizontal	Engine type	Air-cooled four-stroke gasoline engine, OHV
Split method	1 WAYS	Engine capacity	4.5P 165CC/6.5P 208CC
Cycle	8S	Engine axial	The horizontal axis
Oil pump model/flow L/min	CBNA-13/1.8D 1J746806/46.8	Start the engine	Electric / Recoil
Control valve	100L three-position automatic return	Rated Torque* (N.m @3060rpm)	12.9
Maximum tonnage	15T	Cylinder	Single cylinder, cast iron cylinder liner
Hydraulic oil number	32#/46#	Engine fuel tank capacity	3.1L
Tire (inch)	10	Bore (MM)	68.3
Hydraulic oil minimum level	8L	Oil Capacity (L)	0.6
Hydraulic oil maximum level	11L	Stroke (MM)	55.9
Cylinder inner diameter (MM)	80	Net Weight (KG)	16
Log splitting stroke (MM) can be customized	650	Engine specifications (length, width and height)	321376346

25TON
Parameter Type	Parameter	Parameter Type	Parameter
Product Dimensions (L/W/H*MM)	2170/890/985	Log splitting stroke (MM) can be customized	660
Bare metal weight (KG)	240	Operating pressure	20MP-32MP adjustable
Packing size (L/W/H*MM)	1230/700/930	OEM	Acceptable
Total packing weight (KG)	272	Engine brand	Breton
Horizontal/Vertical	Standing and sleeping	Engine type	Air-cooled four-stroke gasoline engine, OHV
Split method (optional)	2-way/4-way	Engine capacity	6.5P 208CC
Cycle	11S	Engine axial	The horizontal axis
Oil pump model/flow L/min	CBNA-13/1.8D 1J746806/46.8	Start the engine	Electric / Recoil
Control valve	100L three-position automatic return	Rated Torque* (N.m @3060rpm)	12.9
Maximum tonnage	28T	Cylinder	Single cylinder, cast iron cylinder liner
Hydraulic oil number	46#	Engine fuel tank capacity	3.1L
Filter	Yes	Bore (MM)	68.3
Tire	4.8-8	Oil Capacity (L)	0.6
Traction	American 2*2 Trailer Ball Cover	Stroke (MM)	55.9
Hydraulic oil minimum level	9L	Net Weight (KG)	16
Hydraulic oil maximum level	13L	Engine specifications (length, width and height)	321376346
Cylinder inner diameter (MM)	100

Specification

item	value
Condition	New
Applicable Industries	Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Home Use, Construction works , Energy & Mining
Showroom Location	Canada, United States, Italy
Condition	New
Type	Log Splitter
Use	Splitting wood
Power Type	Electric
Place of Origin	China
	Shandong
Brand Name	Jerry-Sawmill
Dimension(LWH)	1250/340/680mm
Weight	100KG
Warranty	1 Year
Marketing Type	New Product 2022
Machinery Test Report	Provided
Video outgoing-inspection	Provided
Warranty of core components	1 Year
Core Components	Bearing, Motor, Engine
Product name	Hydraulic Electric Wood Log Splitter
Application	Wood Splitting Wounted
Usage	Wood Shredder Cutting Wood Branch
Power	Electric Motor
Raw material	Wood Tree
Certification	CE.EPA
Package	Wooden Case
Feature	Portable Split Wood

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile

Shandong Jierui Machinery Equipment Co., Ltd. is one of the world's leading high-quality sawmill manufacturers. The company has been committed to the production and R & D of sawmills and sincerely serves 12000 enterprises. Our products have been exported to 61 countries in the world. At present, the company covers a large number of product lines, including log sawing equipment, solid wood furniture processing equipment and wood chopping equipment. With standardized quality management and service, the company has won the favor of many customers and become the best sawmill supplier in the world. The company is committed to continuously strengthening its own technological innovation and accelerating the R & D of sawmill machinery, Strive to provide each partner with the best combination of sawmill production lines
