Electric Motor Vertical Wood Splitter For Upside Down Log Splitting In Construction

Large Image : Electric Motor Vertical Wood Splitter For Upside Down Log Splitting In Construction

Product Details:

Place of Origin:	Shandong, China
Brand Name:	Jerry-Machinery
Certification:	CE.EPA

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	$200.00/sets 1-9 sets
Packaging Details:	Customizable packaging
Payment Terms:	L/C, T/T, Western Union, MoneyGram

Contact Now

Electric Motor Vertical Wood Splitter For Upside Down Log Splitting In Construction

Description

Applicable Industries:	Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Home Use, Construction Works , Energy & Mining	Showroom Location:	None
Condition:	New, New	Type:	Log Splitter
Use:	Splitting Wood	Power Type:	Electric
Weight:	50 KG	Warranty:	1 Year
Marketing Type:	New Product 2022	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Warranty Of Core Components:	1 Year
Core Components:	Bearing, Motor, Engine	Product Name:	Hydraulic Electric Wood Log Splitter
Application:	Wood Splitting Wounted	Usage:	Wood Shredder Cutting Wood Branch
Power:	Electric Motor	Raw Material:	Wood Tree
Package:	Wooden Case	Feature:	Portable Split Wood

Products Description

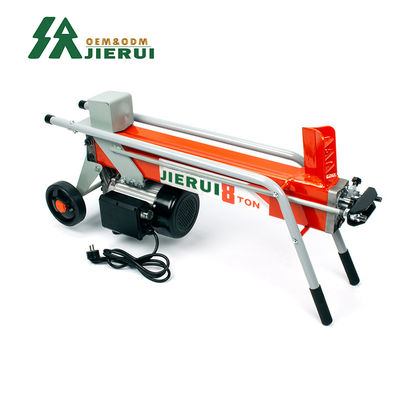

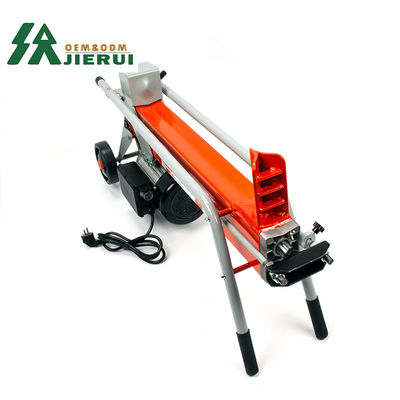

_{Log splitter JR 8T Electric}
Performance	Packaging size		1010285485mm
		weight		43.5KG
		Cutting & splitting diameter		50-400 mm
		Cycle time		6--11S
		Work efficiency		2-4 CBM/H
		Splitting		Automatic

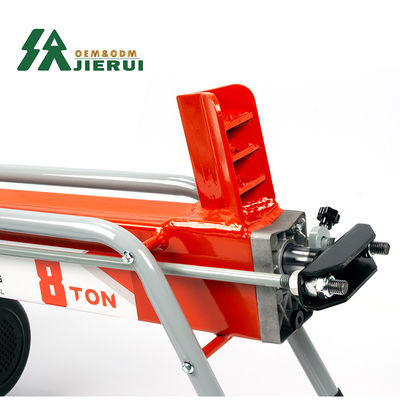

		Splitting wedge		2/4/ way
		Tire size		6 inch

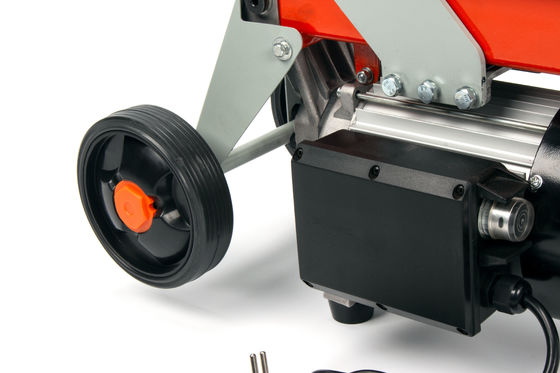

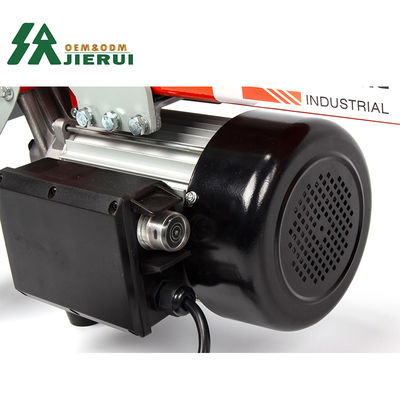

	Machine assembly	Engine		2.2 KW electric motor 110/220V
		Pump		10GMP (1-stage)
		Splitting cylinder		30-55mm
		Hydraulic oil tank		3.6 L
Packing	Size		1030X285X485 mm
		Weight		54.5KG
		Loading Qty		100/250 pcs (20GP/40HQ)

Jierui Machinery are proud to unveil our new range of firewood processors, After years of being in the forestry industry a processor, has always been in the works. The JR500D is our 30ton splitting force model. With its modern efficient hydraulic system the dominator processors are smooth and easy to use and complies with the new (2018) CE safety standard. The JR500D comes complete with hydraulic feeder, 3 meter conveyor,22″ STHIL Chainsaw blade and Briggs & Stratton engine with electric start as standard. We have tried to keep the operation simple, easy and safe. The saw will not engage until the safety handle is used and guards are down. If the guard is raised the hydraulic system will automatically stop the saw and splitter from working for increased operator safety. Once the timber has been sawn and dropped into the splitting area the ram will automatically engage pushing the log into the fully height adjustable 4 way splitting head. The processor has a 50mm tow hitch for towing around the yard or working area.

Product Details

Splitting size 40-400mm

One handed operation

_{High performance European standard motor}

High strength solid hydraulic rod

High quality tires

Integrated welding cleaver

Certifications

MEMBERSHIP CERTIFICATE

ENGINE CERTIFICATE

CE CERTIFICATE

Attend the exhibition

Product packaging

Company Profile

Shandong Jierui Machinery Equipment Co., Ltd. is one of the world's leading high-quality sawmill manufacturers. The company has been committed to the production and R & D of sawmills and sincerely serves 12000 enterprises. Our products have been exported to 61 countries in the world. At present, the company covers a large number of product lines, including log sawing equipment, solid wood furniture processing equipment and wood chopping equipment. With standardized quality management and service, the company has won the favor of many customers and become the best sawmill supplier in the world. The company is committed to continuously strengthening its own technological innovation and accelerating the R & D of sawmill machinery, Strive to provide each partner with the best combination of sawmill production lines
