Automatic Firewood Processor Electric Motor Wood Splitter For Construction Works

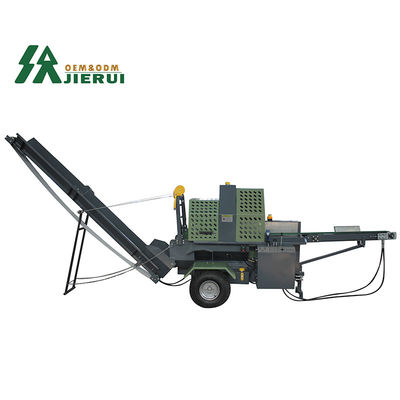

Large Image : Automatic Firewood Processor Electric Motor Wood Splitter For Construction Works

Product Details:

Place of Origin:	Shandong, China
Brand Name:	Jerry-Machinery
Certification:	CE.EPA

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	$3,900.00/sets 1-9 sets
Packaging Details:	Customizable packaging
Payment Terms:	L/C, T/T, Western Union, MoneyGram

Contact Now

Automatic Firewood Processor Electric Motor Wood Splitter For Construction Works

Description

Applicable Industries:	Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Home Use, Construction Works , Energy & Mining	Showroom Location:	None
Condition:	New, New	Type:	Log Splitter
Use:	Splitting Wood	Power Type:	Gasoline
Dimension(LWH):	2300x1250x1750mm	Weight:	800 KG
Warranty:	1 Year	Marketing Type:	New Product 2022
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Warranty Of Core Components:	1 Year	Core Components:	Bearing, Motor, Engine
Product Name:	Firewood Processor Log Splitter	Power:	Electric/Gasoline/Diesel Motor
Raw Material:	Wood Tree	Feature:	Portable Split Wood

Products Description

_{Firewood Processor JR480D-20T Electric}
Performance	Max splitting power		20T
		Max splitting length		Standard 610mm (24 inch)
		Max cutting & splitting diameter		500mm (19.8 inch)
		Cycle time		8-12S
		Work efficiency		4-7CBM/H
		Wood fixing		Hydraulic
		Saw cutting		Joystick with solenoid valve
		Saw lubrication		Automatic by hydraulic system
		Splitting		Automatic
		Splitting wedge		4/6/8 way (height adjustable)
Machine assembly	Engine		7.5KW dedicated hydraulic motor
		Pump		24GMP (2-stage)
		Splitting cylinder		3.15”x24”x2”
		Hydraulic oil tank		100L
		Feeding conveyor		2400*370mm
		Rear loading conveyor		3200*270mm
		Tyre		22x11-10*4
		Traction		50mm ball couple
Packing	Size		2300x1250x1820mm
		Weight		980KG
		Loading Qty		7/16 pcs (20GP/40HQ)

Jierui Machinery are proud to unveil our new range of firewood processors, After years of being in the forestry industry a processor, has always been in the works. The JR500D is our 30ton splitting force model. With its modern efficient hydraulic system the dominator processors are smooth and easy to use and complies with the new (2018) CE safety standard. The JR500D comes complete with hydraulic feeder, 3 meter conveyor,22″ STHIL Chainsaw blade and Briggs & Stratton engine with electric start as standard. We have tried to keep the operation simple, easy and safe. The saw will not engage until the safety handle is used and guards are down. If the guard is raised the hydraulic system will automatically stop the saw and splitter from working for increased operator safety. Once the timber has been sawn and dropped into the splitting area the ram will automatically engage pushing the log into the fully height adjustable 4 way splitting head. The processor has a 50mm tow hitch for towing around the yard or working area.

Product Details

Hydraulic automatic log clamping

Automatic feed conveyor system

Setting the length of firewood

Both 4-way and 6-way are supported

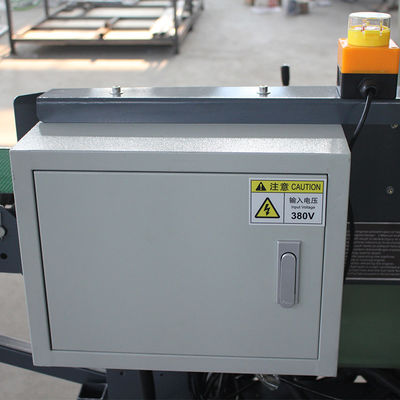

Fully automatic control system

Log lifter-JR100

Log table-JR200

Automatic safety protection device

Splitting wedges can be adjusted up or down

We use STIHL chain saw guides and chains imported from Germany

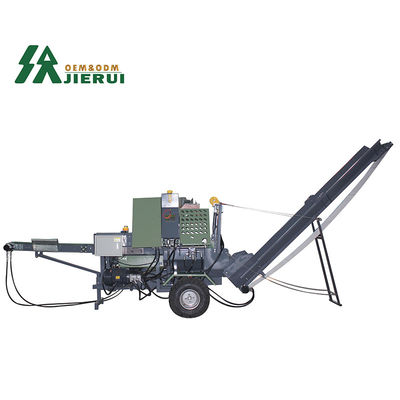

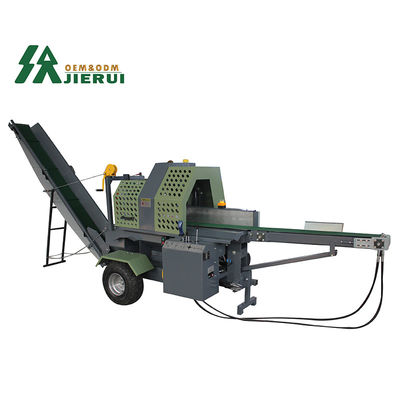

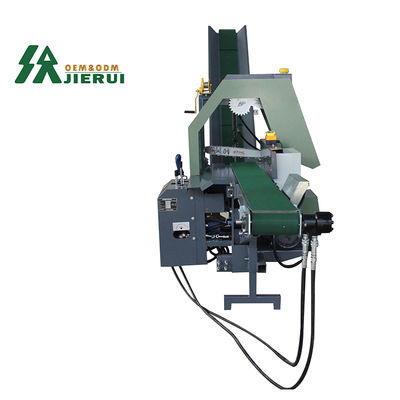

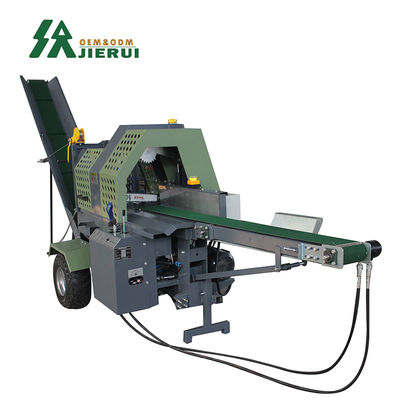

Product Display

Certifications

MEMBERSHIP CERTIFICATE

ENGINE CERTIFICATE

CE CERTIFICATE

Attend the exhibition

Product packaging

Company Profile

Shandong Jierui Machinery Equipment Co., Ltd. is one of the world's leading high-quality sawmill manufacturers. The company has been committed to the production and R & D of sawmills and sincerely serves 12000 enterprises. Our products have been exported to 61 countries in the world. At present, the company covers a large number of product lines, including log sawing equipment, solid wood furniture processing equipment and wood chopping equipment. With standardized quality management and service, the company has won the favor of many customers and become the best sawmill supplier in the world. The company is committed to continuously strengthening its own technological innovation and accelerating the R & D of sawmill machinery, Strive to provide each partner with the best combination of sawmill production lines
