800 KG Firewood Processor with Gasoline Power Type and Durable Circular Saw in Australia

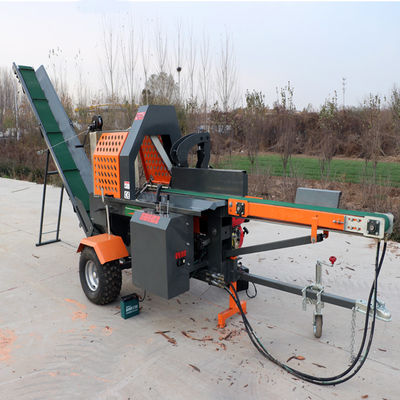

Large Image : 800 KG Firewood Processor with Gasoline Power Type and Durable Circular Saw in Australia

Product Details:

Place of Origin:	Shandong, China
Brand Name:	Jerry-Machinery
Certification:	CE.EPA

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	$3,900.00/sets 1-9 sets
Packaging Details:	Customizable packaging
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	100 Set/Sets per Month

Contact Now

800 KG Firewood Processor with Gasoline Power Type and Durable Circular Saw in Australia

Description

Applicable Industries:	Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Home Use, Construction Works , Energy & Mining	Showroom Location:	United States, None
Condition:	New, New	Type:	Log Splitter
Use:	Splitting Wood	Power Type:	Gasoline
Dimension(LWH):	2300x1250x1750mm	Weight:	800 KG
Warranty:	1 Year	Marketing Type:	New Product 2022
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Warranty Of Core Components:	1 Year	Core Components:	Bearing, Motor, Engine
Product Name:	Firewood Processor Log Splitter	Power:	Electric/Gasoline/Diesel Motor
Raw Material:	Wood Tree	Feature:	Portable Split Wood
Port:	QINGDAO

Products Description

Max Splitting Force	15T	20T
Cycle Time	7seconds	8seconds
Max Splitting Length	610mm	610mm
Max Splitting Diameter	380mm	400mm
Work Efficiency	4m3/h	5m3/h
Power	13.5HP gasoline engine	13.5HP gasoline engine
Engine Displacement	420cc	420cc
Fuel Tank Capacity	6.6L	6.6L
Engine Oil Capacity	1.1L	1.1L
Gross Torque	25N.m/2500rpm	25N.m/2500rpm
Firewood Conveyor	Length:3.2m	Length:3.2m
		Width of belt:250mm	Width of belt:250mm
		Width of chute:400mm	Width of chute:400mm
		Hydraulic rotator:1set	Hydraulic rotator:1set
Chain Saw length	22‘’	22”
Chain Saw Rotate Speed	5600rpm	5600rpm
Sawing Speed	Adjustable	Adjustable
Oil Pump	22GMP, 2-stage	22GMP, 2-stage
Oil Tank Capacity	50L	50L
Control Valve	ONE-handle	ONE-handle
Control Valve		4-Directional control valve	4-Directional control valve
Tyre	12"	12"
Knife	4 ways (6 ways option)	4 ways (6 ways option)
Weight	480kg	510kg
Main Machine Package size	2200x900x1100mm	2200x900x1100mm
Conveyor Package Size	22609601170mm	22609601170mm
Units/20’:	7Units	7Units

Jierui Machinery are proud to unveil our new range of firewood processors, After years of being in the forestry industry a processor, has always been in the works. The JR480D is our 20ton splitting force model. With its modern efficient hydraulic system the dominator processors are smooth and easy to use and complies with the new (2018) CE safety standard. The JR480D comes complete with hydraulic feeder, 3 meter conveyor,22″ STHIL Chainsaw blade and Briggs & Stratton engine with electric start as standard. We have tried to keep the operation simple, easy and safe. The saw will not engage until the safety handle is used and guards are down. If the guard is raised the hydraulic system will automatically stop the saw and splitter from working for increased operator safety. Once the timber has been sawn and dropped into the splitting area the ram will automatically engage pushing the log into the fully height adjustable 4 way splitting head. The processor has a 50mm tow hitch for towing around the yard or working area.

Product Details

Hydraulic automatic log clamping

Automatic feed conveyor system

Setting the length of firewood

Both 4-way and 6-way are supported

Fully automatic control system

Log lifter-JR100

Log table-JR200

Automatic safety protection device

Splitting wedges can be adjusted up or down

We use STIHL chain saw guides and chains imported from Germany

Product Display

Certifications

MEMBERSHIP CERTIFICATE

ENGINE CERTIFICATE

CE CERTIFICATE

Attend the exhibition

Product packaging

Company Profile

Shandong Jierui Machinery Equipment Co., Ltd. is one of the world's leading high-quality sawmill manufacturers. The company has been committed to the production and R & D of sawmills and sincerely serves 12000 enterprises. Our products have been exported to 61 countries in the world. At present, the company covers a large number of product lines, including log sawing equipment, solid wood furniture processing equipment and wood chopping equipment. With standardized quality management and service, the company has won the favor of many customers and become the best sawmill supplier in the world. The company is committed to continuously strengthening its own technological innovation and accelerating the R & D of sawmill machinery, Strive to provide each partner with the best combination of sawmill production lines
